Introduction

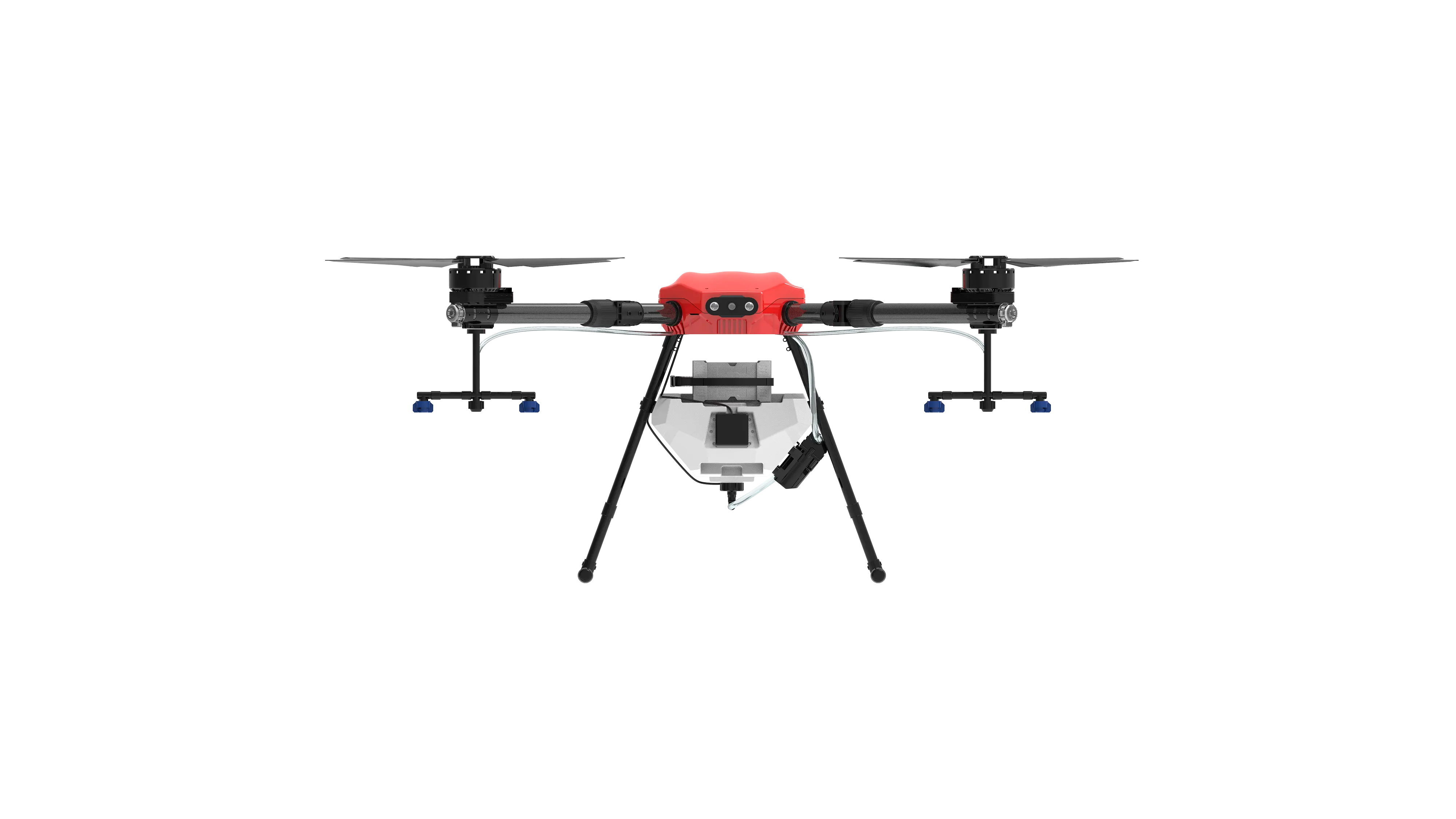

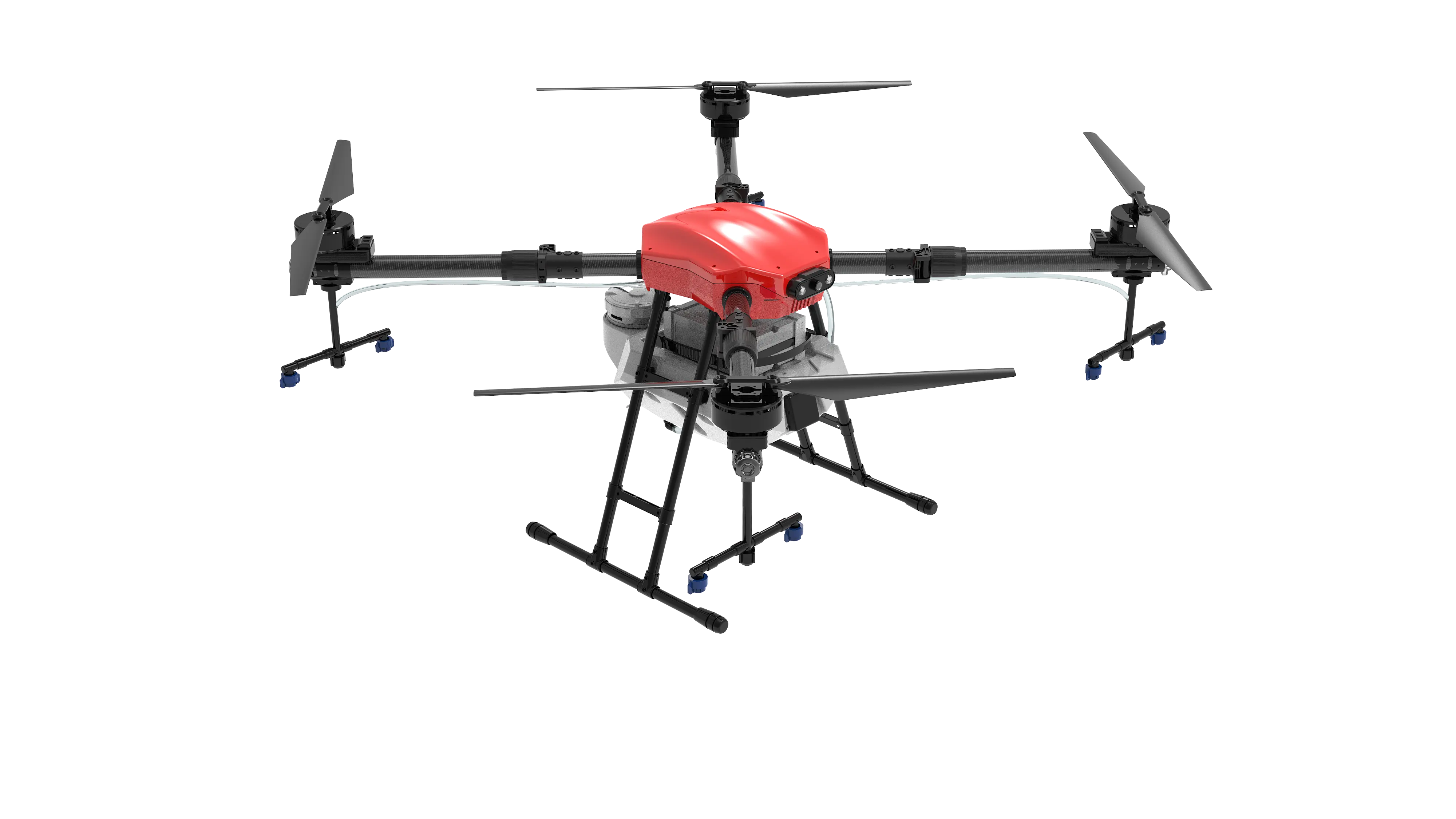

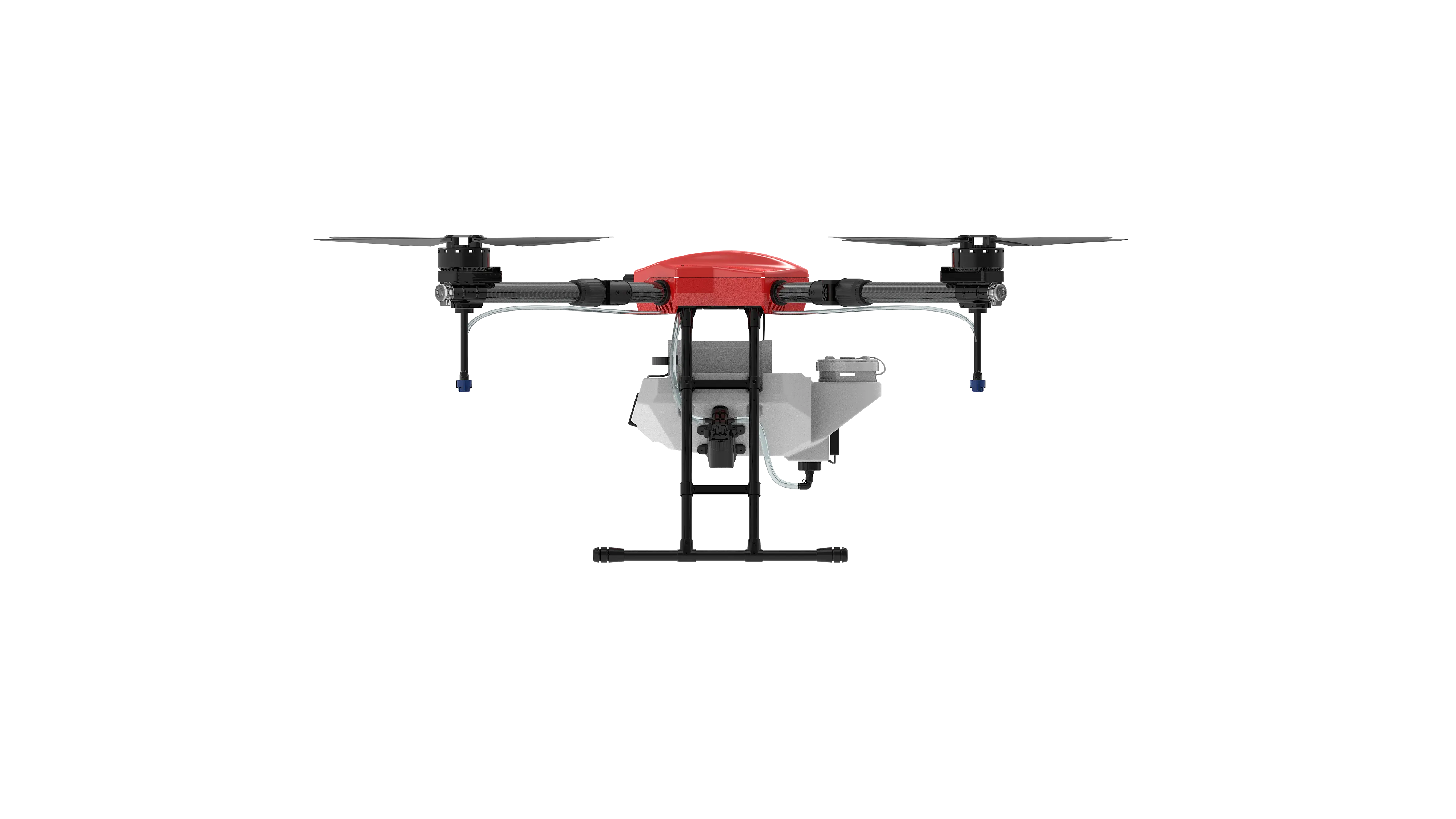

U16L-4 adopts the design of aerial spraying, which greatly enhances the absorption of pesticides by crops and seedlings, and the design of aerial spraying will not hurt the crops, which greatly improves the survival rate of the crops. The U16L-4 design can save more than half of the amount of pesticides, reduce production costs, and greatly reduce the time that workers are exposed to pesticides, thereby ensuring the safety of workers' lives.

Features

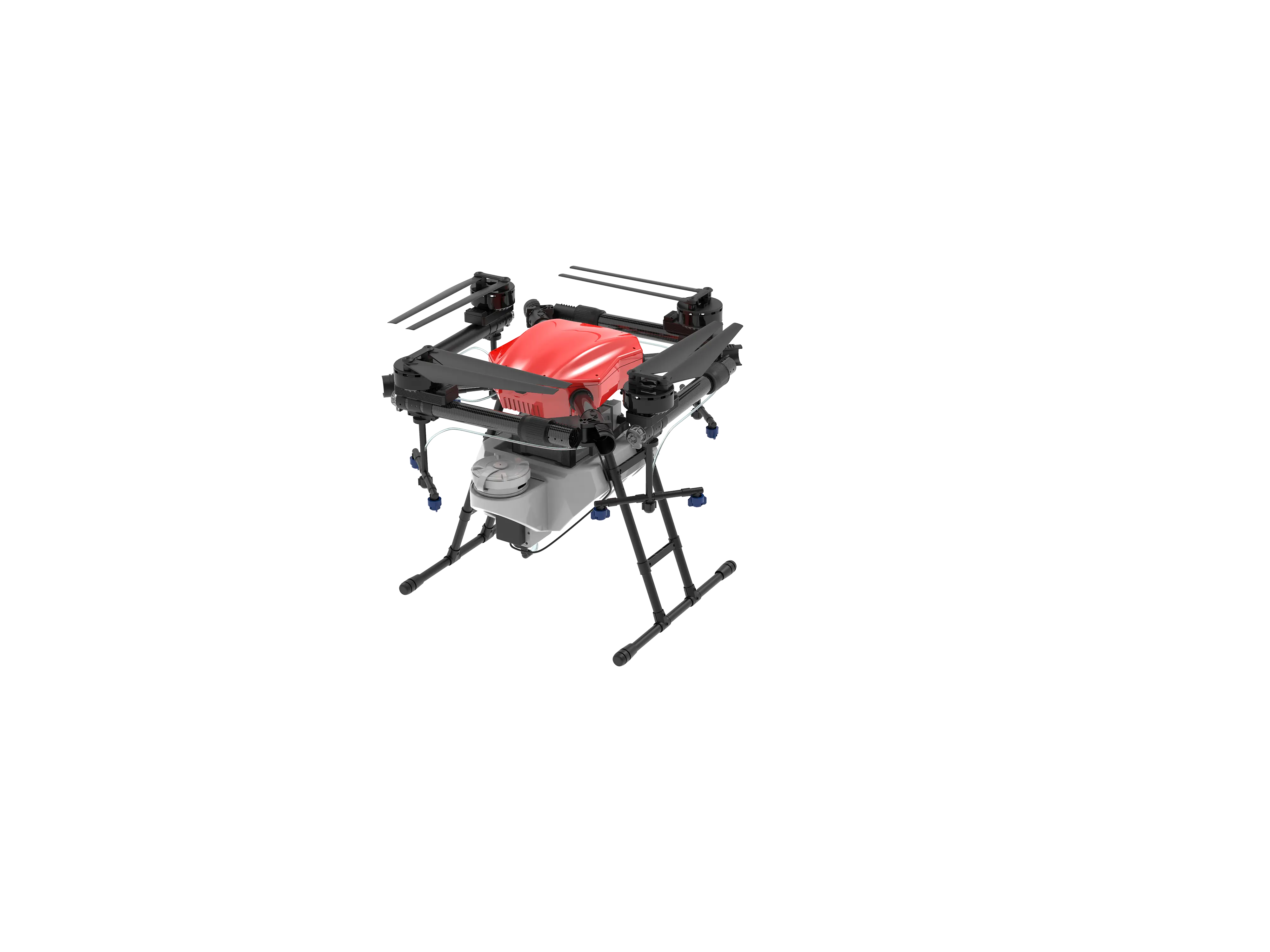

1. Easy to carry (the whole machine can be folded and transported);

2. Accurate control (full or semi-automatic flight, uncontrolled return flight);

3. Safe and reliable (resistance to wind, rain, dust, stability and reliability, strong anti-interference);

4, using industrial brushless motor, high temperature resistance, corrosion resistance, low heat output, stable and reliable operation;

5. Intelligently set the altitude and speed for semi-automatic flight and only need auxiliary battery replacement, and fully automatic flight after adding pesticide;

6. The operating distance ranges from several hundred meters to several kilometers. The operation modes include manual operation by pilots, semi-automatic operation, and computer program control.

Daily Maintenance

1. Every day after the drone is used, it is necessary to maintain the drone and lubricate the bearings with oil (the transmission gear is not point), and to strengthen the structural components and screws of the body.

2. Check whether the connecting rod of the main rotor and the paddle of the agricultural drone is bent, and whether the connecting rod ball head is falling off.

3. Lift the propeller hub to see if the main shaft will move up and down, and check if the bearing screws are loose or loose.

4. Whether the gears of the large gear plate group are damaged, whether the screws of the spindle and the large gear plate group are loose, and whether there is a crack at the contact point between the large gear plate group and the main shaft.

5. Turn the main rotor to eat the pan and the front bevel drive smoothly. If there is an abnormal sound, replace the damaged parts immediately.


The design of separate pluggable medicine barrel greatly improves the working efficiency.

Brushless water pump motor, super long life.

Powerful and high efficiency power system working stability

Remote operation, avoid pesticide poisoning.

Intelligent operation mode, easy operation, more efficiency and accurate

Does not have any waste gas, absolute environmental protection

Small size needn’t special landing airport, light weight and easy to carry

Spray pattern can save at least 50%of pesticide use and reduce water consumption, which greatly reduce the extent of resource cost

Alternate spray function, the nozzle can be switched separately.


Property Data
Model U16L-4
Product material Aviation carbon fiber + aviation aluminum
Product expansion size 1990mm*1965mm*500mm
Product folding size 840mm*480mm*500mm
Packaging size 1000mm*550mm*750mm
Maximum takeoff weight 34KG
Aircraft weight 15KG
Pesticide Barrel 16L(standard a bucket)
Flight altitude ≤30 meters
FlyTime(Unloaded) 20~25 minutes
Fly Time( Loaded) 10~13 minutes when fully loaded
Flight speed 1-10 m / sec
Structure lift span ≥10 years
Spray width 4-8 meters
Hovering in the air Hovering in any direction
Spray flow 3-8L/min double pump adjustable
Spray system Imported high pressure anti-floating atomizing nozzle
Atomization point size 60~90μm
Fly Control Industrial Version GPS and Controller
Spray efficiency 5~6hectares/hour
Safe takeoff and landing wind speed ≤5
Motor speed 5000rpm
Power system 56V power polymer computer battery
Charer style AC Input 100-240V
Lithium-polymer battery 16000mAh*1
